Portable field reader

Portable Scanner

Support search, commissioning validation, zone surveys and offline collection in the field.

Available TodayRequest a quote

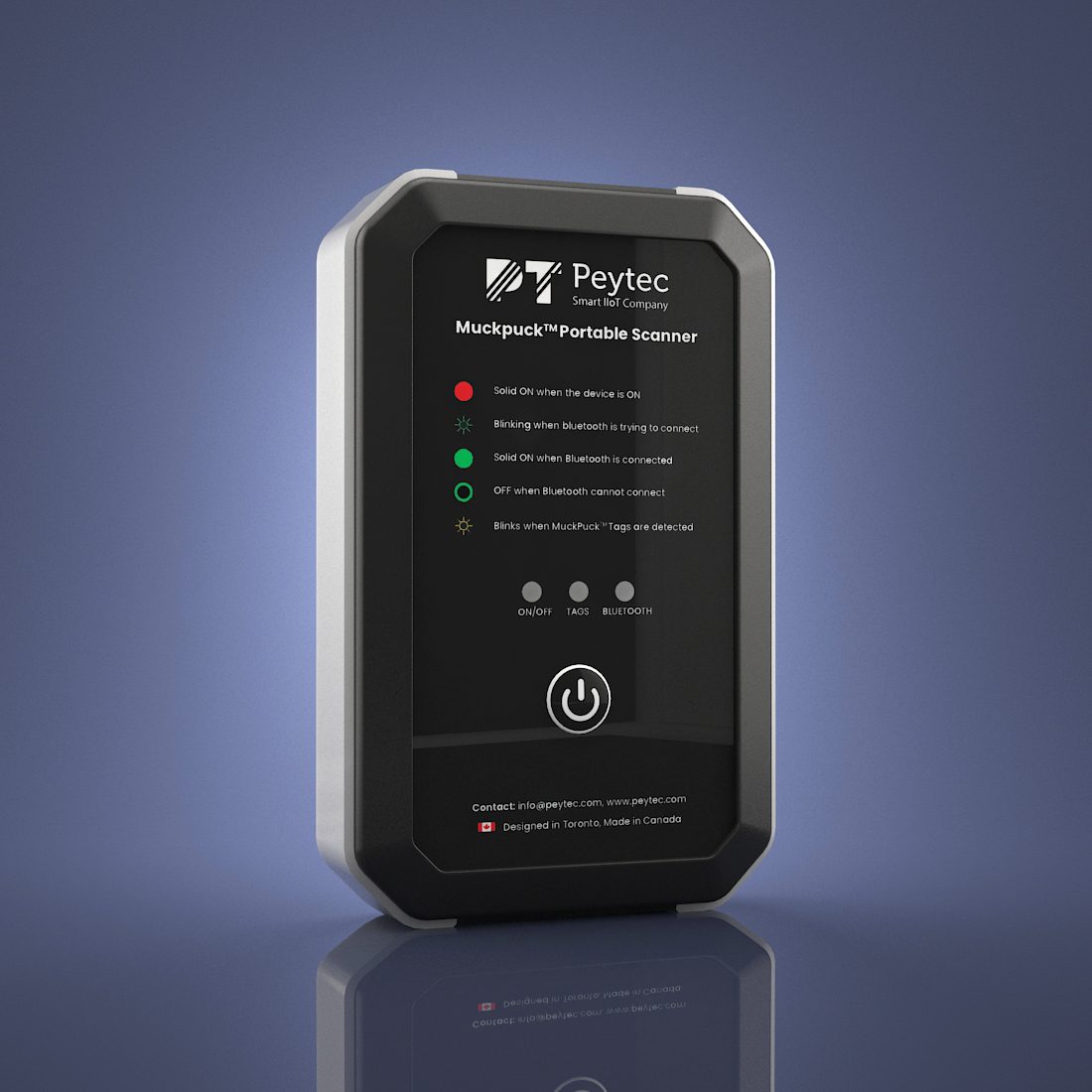

MuckPuck Portable Scanner shown upright from the front with its display and indicators.

Operational focus

Make the material journey visible.

01

Portable search

Connect each decision to observed material evidence and the context needed to act.

02

Commissioning checks

Connect each decision to observed material evidence and the context needed to act.

03

Offline collection

Connect each decision to observed material evidence and the context needed to act.

How the scanner is used

Power on. Connect. Scan. Review.

The MuckPuck Portable Scanner listens for MuckPuck tags through Peytec’s WPSN™ network, virtually anywhere on a mine site.

  1. 01

    Power on

    Switch on the battery-operated scanner, up to 12 hours covers one or more shifts in the field.

  2. 02

    Connect

    Pair the scanner with a smartphone over Bluetooth in the MuckPuck mobile app, no internet required.

  3. 03

    Scan

    Walk or drive the area underground, on surface or in tailings, and the scanner detects MuckPuck tags in its proximity.

  4. 04

    Review

    See detected tag IDs in real time on the display, with offline tag status stored in the mobile app.

Detected tag information stays available offline in the mobile app, so field teams can verify material movement even without connectivity.

View source at Peytec.com

Product views

Built as a rugged, battery-operated field scanner.

Inspect the MuckPuck Portable Scanner display, sealed enclosure, identification side and battery bay from every angle.

MuckPuck Portable Scanner in action

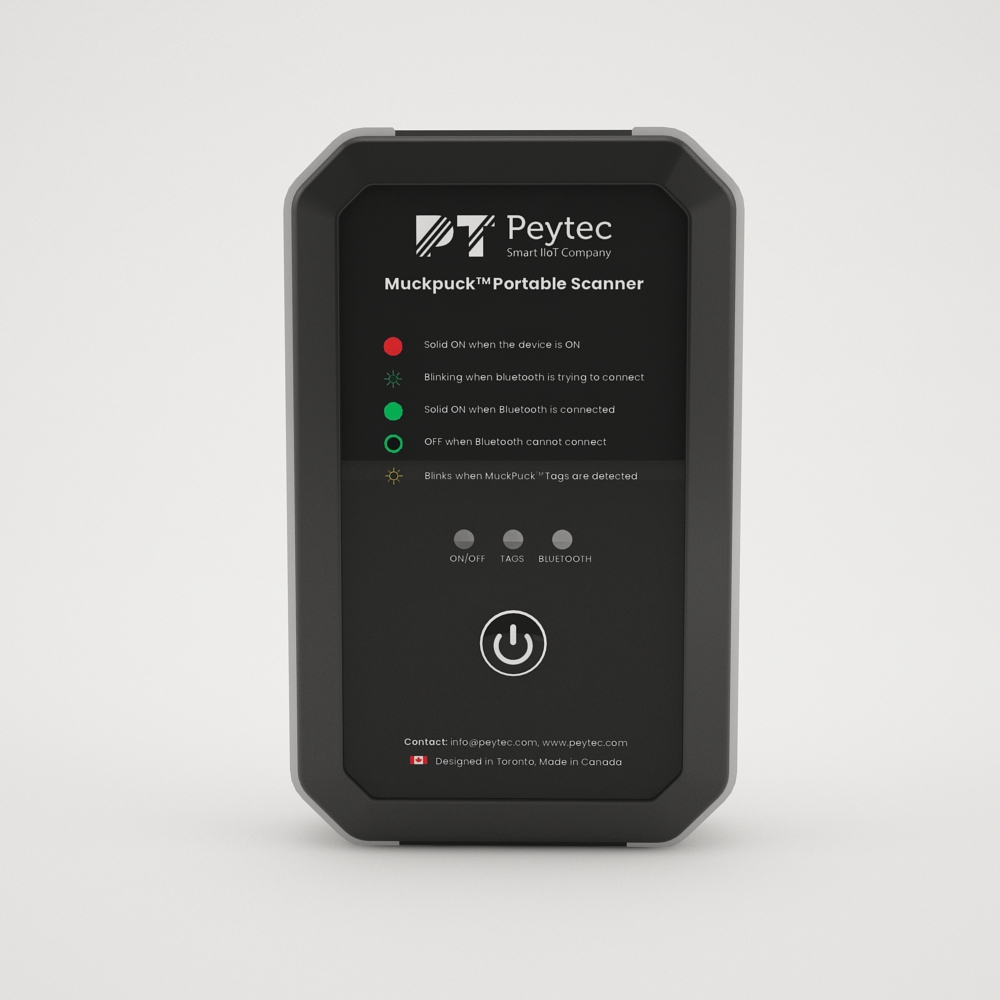

Front view of the MuckPuck Portable Scanner showing its status indicators, buttons and power control.
Front view

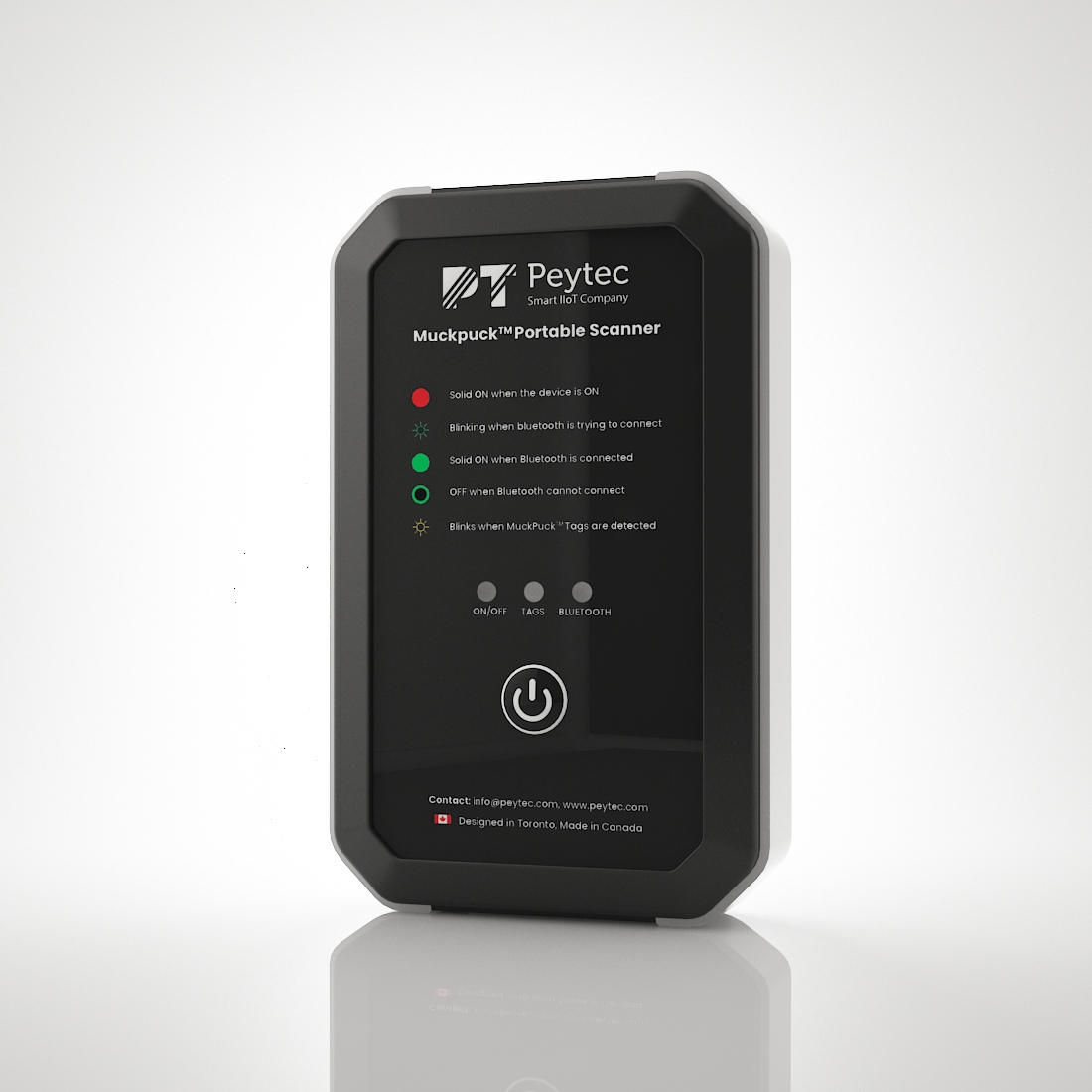

MuckPuck Portable Scanner standing upright, viewed from the front left on a light surface.
Front, left view

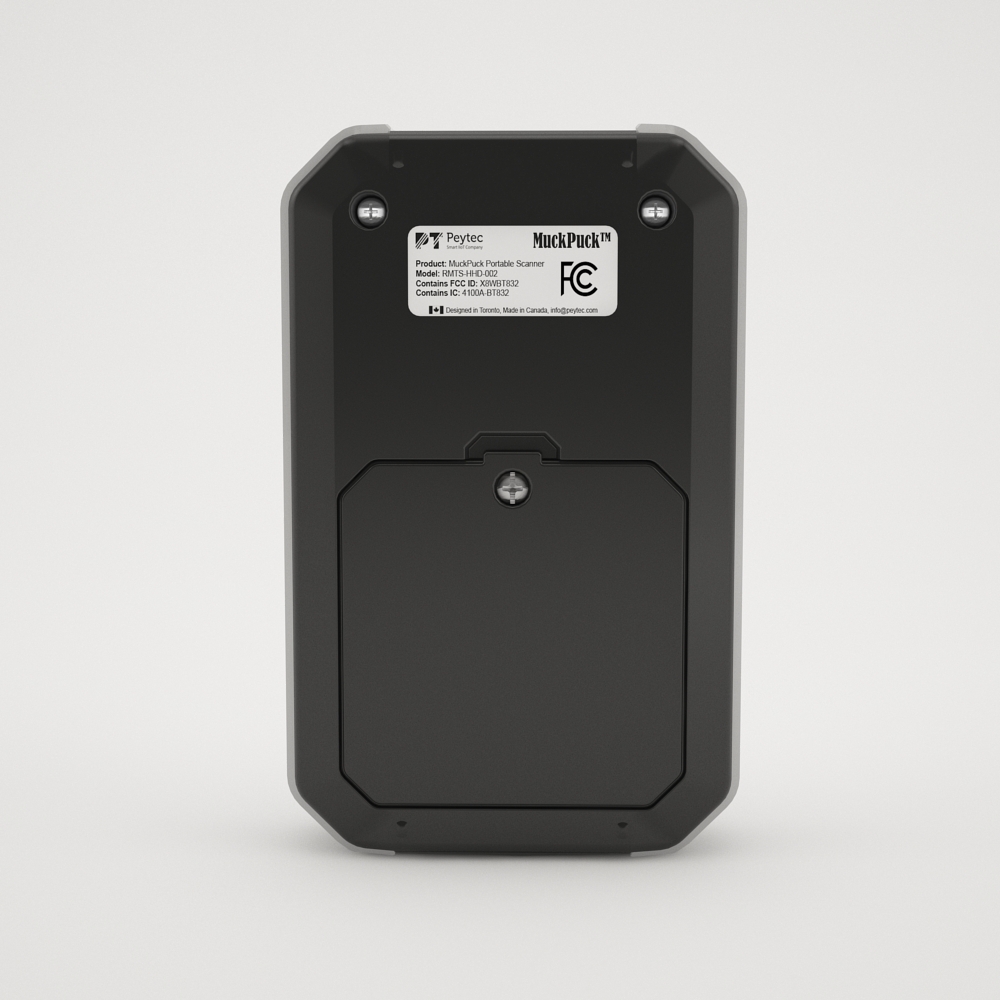

Rear of the MuckPuck Portable Scanner showing its identification label and battery cover.
Rear view

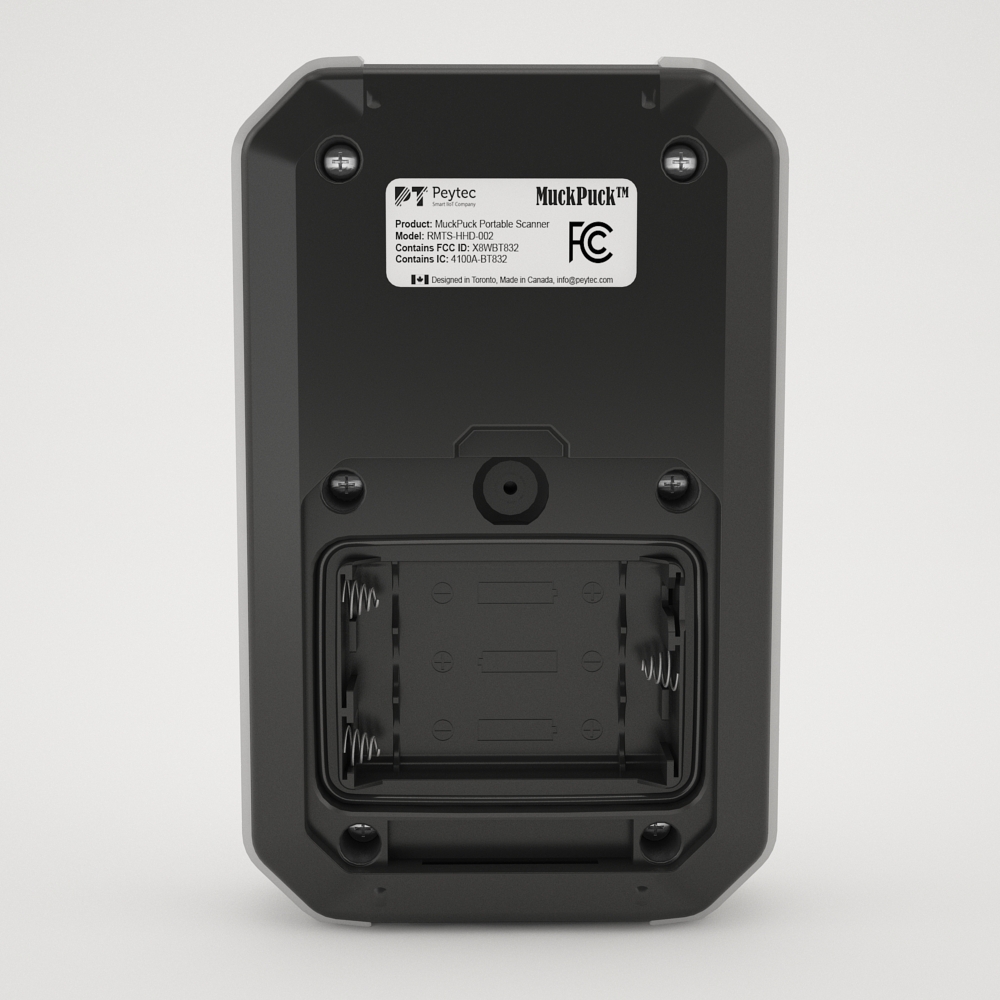

Rear of the MuckPuck Portable Scanner with the battery compartment open, showing three AA battery slots.
Rear, battery bay open

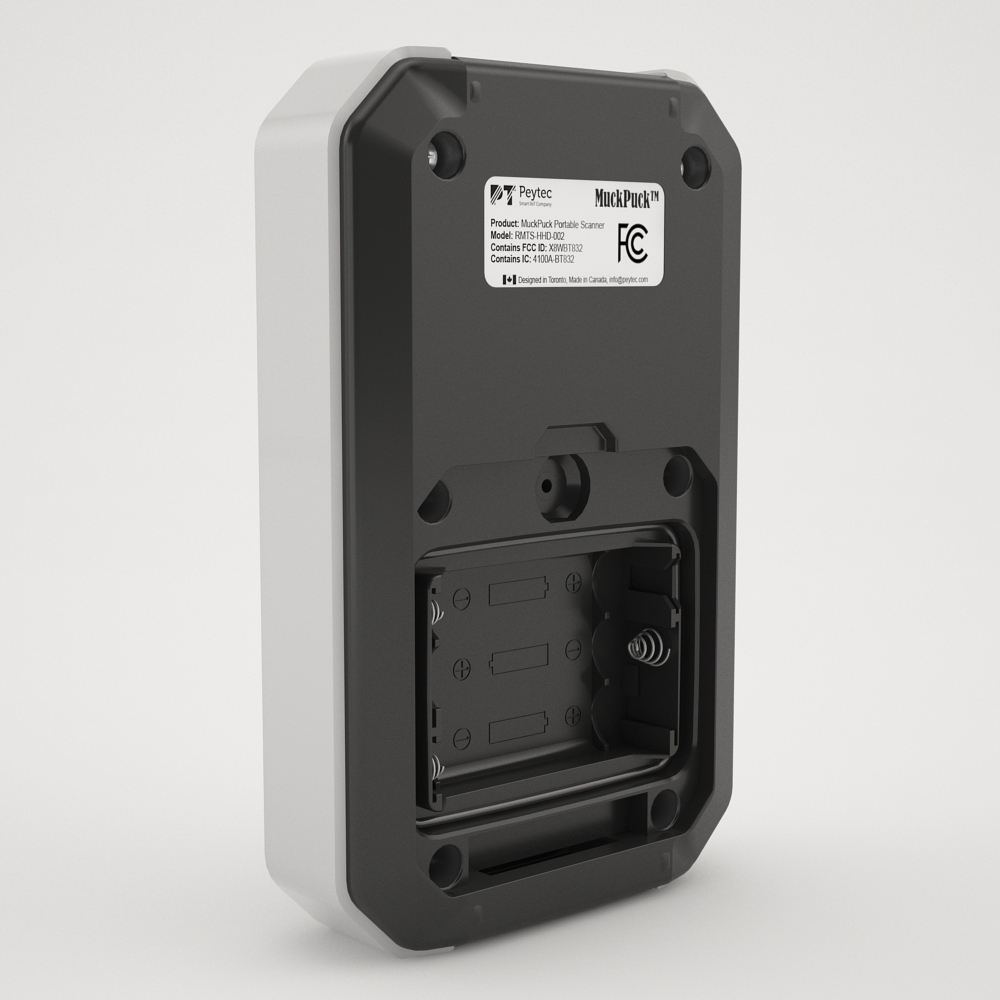

Perspective view of the MuckPuck Portable Scanner rear with the battery compartment open.
Rear, perspective view

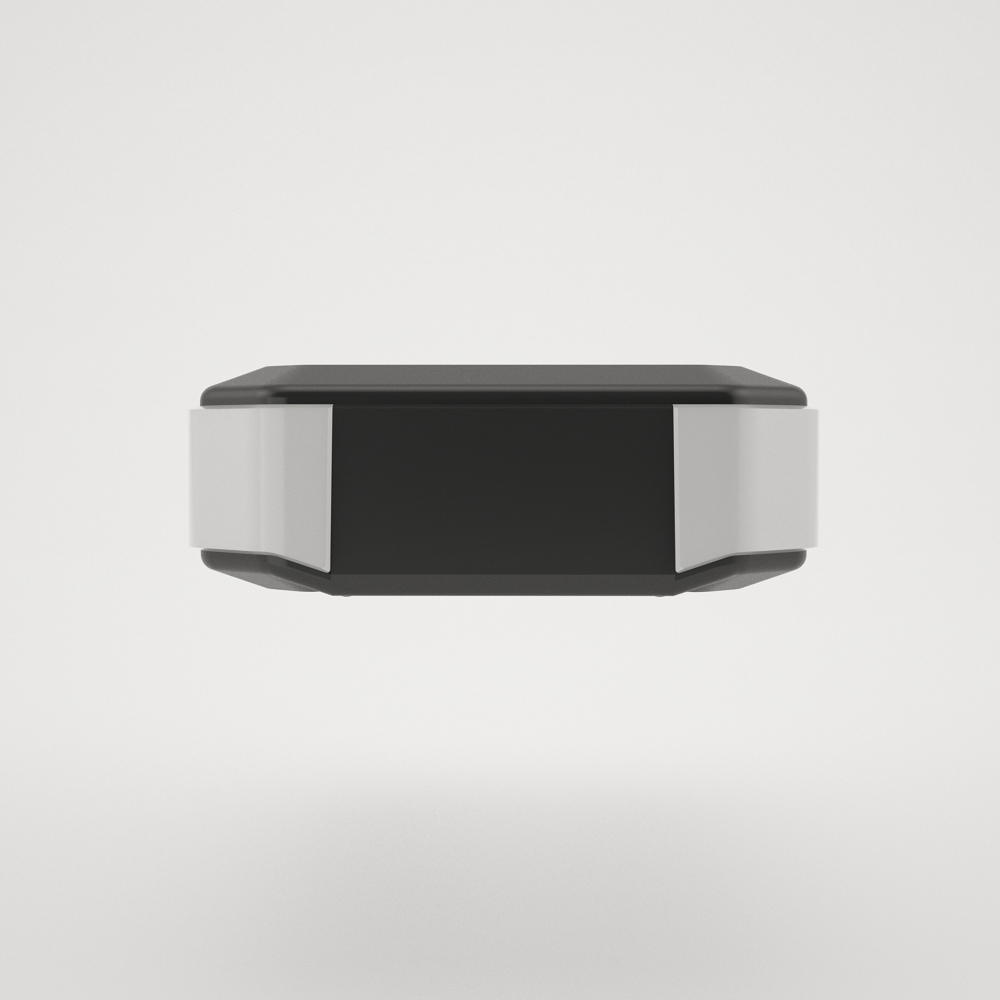

Low side profile of the MuckPuck Portable Scanner showing its rugged sealed enclosure.
Profile view

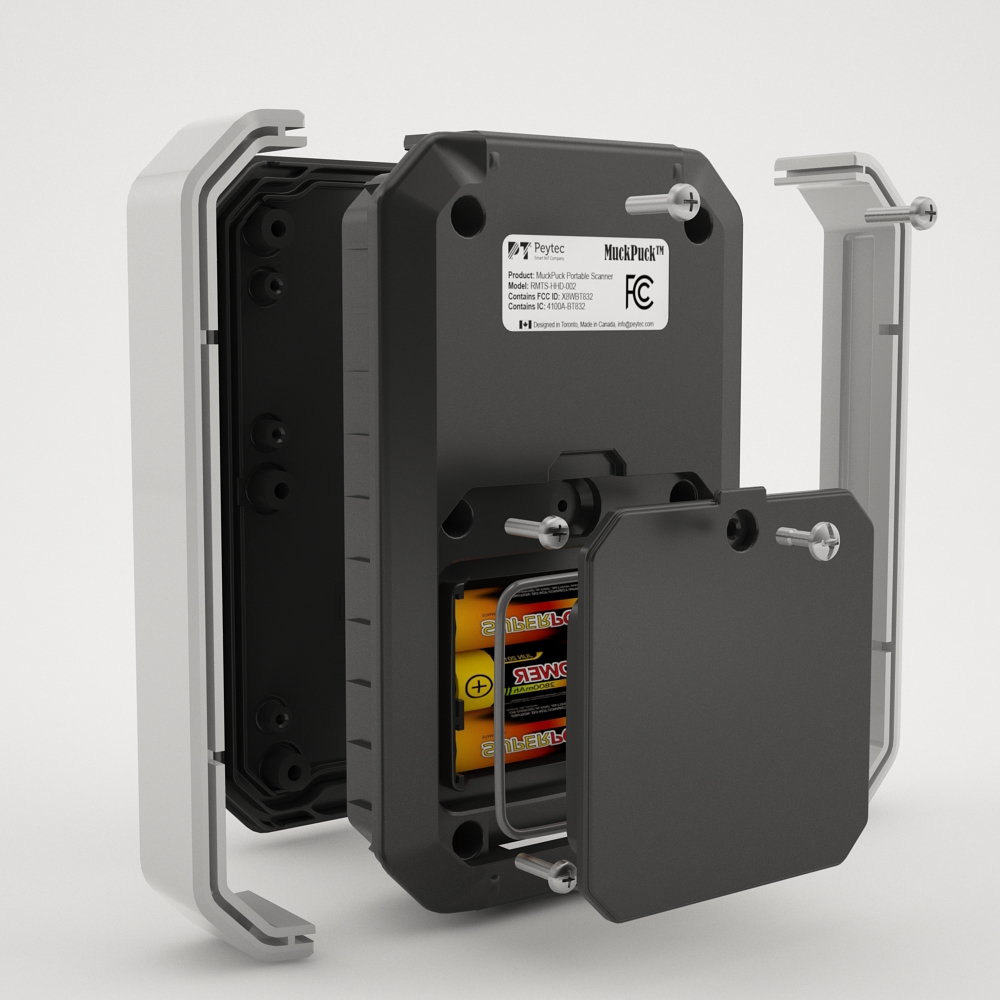

Exploded view of the MuckPuck Portable Scanner showing its enclosure parts, battery compartment and three AA batteries.
Exploded view

Product detail

Designed as part of the MuckPuck system.

MuckPuck Portable Scanner, Revision 6

System role

Support search, commissioning validation, zone surveys and offline collection in the field.

Compatibility

Connects to a smartphone via Bluetooth and scans for MuckPuck tags anywhere in the mine, underground or on surface, without internet connectivity.

Real-time display

Displays scanned MuckPuck tag IDs in real time, with offline tag status stored in the mobile app.

Product
Part numberRMTS-HHD-002
DescriptionMuckPuck™ Portable Scanner
Physical
Size146 mm × 85 mm × 25 mm (5.7 in × 3.3 in × 1 in)
Weight192 g (6.7 oz)
MaterialABS plastic
Environmental
Operating temperature-18°C to +55°C (0°F to +131°F)
Storage temperature-18°C to +55°C (0°F to +131°F)
Environmental sealingIP67, waterproof
Power
Battery3 × AA alkaline
Battery lifeUp to 12 hours, one or more shifts of continuous monitoring
Communications
Wireless protocolsWPSN™, Bluetooth
Frequency915 MHz
Communication rangeUp to 1 km (3,300 ft) outdoor; up to 100 m (330 ft) indoor
Smartphone pairingBluetooth connection to the MuckPuck mobile app, no internet required
Location services
Localization systemDetection, Received Signal Strength (RSSI)
Location accuracy10–100 m (32–328 ft)
Display and controls
DisplayLCD, real-time display of scanned MuckPuck tag IDs
Indicators and controlsLED, ON/OFF button
Approvals
RegulatoryFCC, IC
AvailabilityAvailable Today
