Offline industrial control
Offline Control Reader
A stationary reader that scans for MuckPuck tags and controls up to eight relay outputs locally without internet connectivity.
Configurable by DeploymentTalk to an engineer
Operational focus
Make the material journey visible.
Detect tag signals at long range
Connect each decision to observed material evidence and the context needed to act.
Control up to eight relays offline
Connect each decision to observed material evidence and the context needed to act.
Product detail
Designed as part of the MuckPuck system.

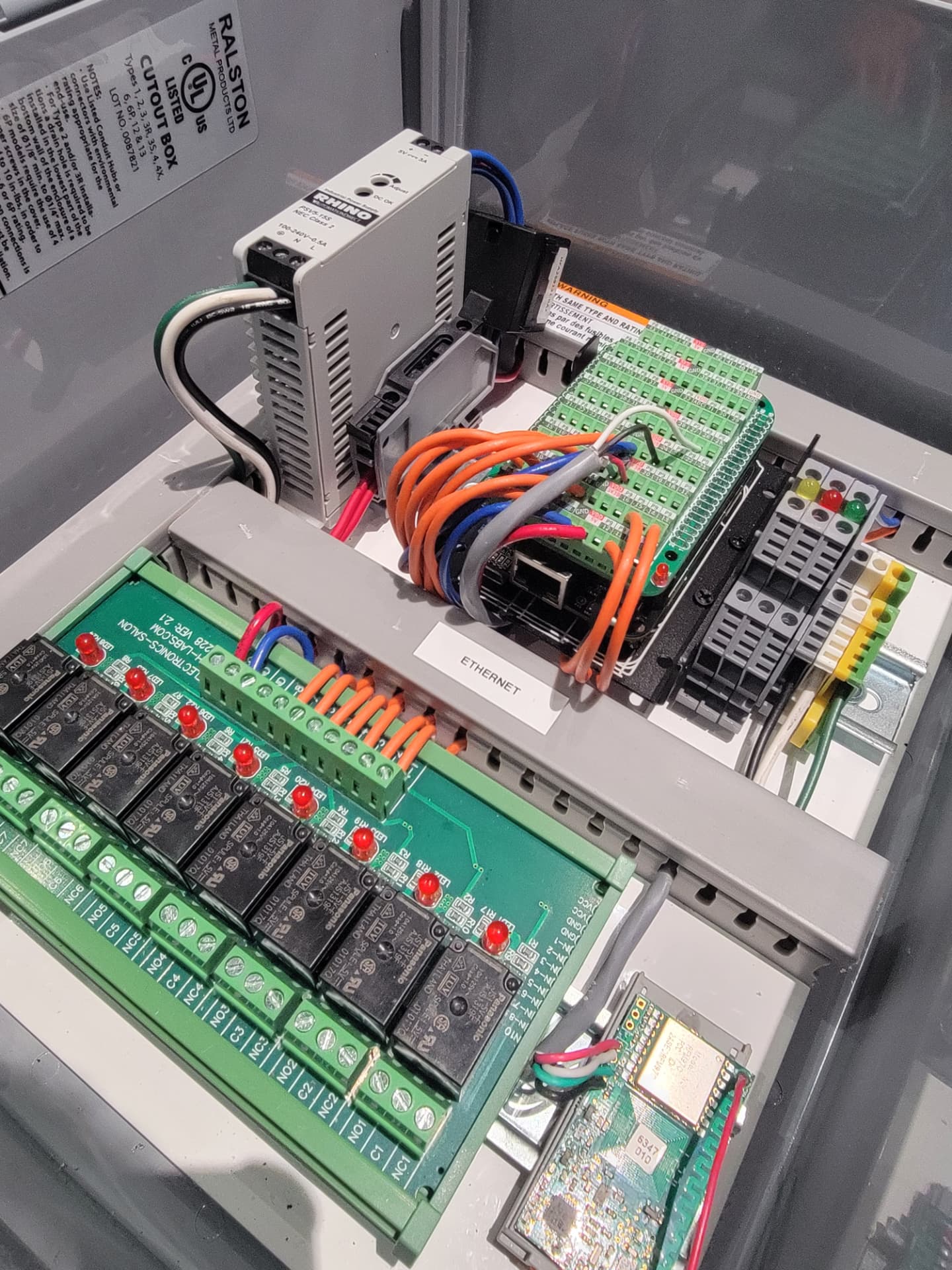

Offline Control Reader, Revision 1
System role
A stationary reader that scans for MuckPuck tags and controls up to eight relay outputs locally without internet connectivity.
Compatibility
Uses WPSN™ at 915 MHz to detect MuckPuck tags, with up to 1 km outdoor and 100 m indoor communication range.
Offline control
Controls the status of up to eight relays locally, without requiring internet connectivity.
| Product | |
|---|---|
| Part number | RMTS-SGY-003 |
| Description | Offline Control Reader |
| Physical | |
| Size | 40 cm × 40 cm × 25 cm (15.7 in × 15.7 in × 9.8 in) |
| Weight | 1.5 kg (52.9 oz) |
| Material | Polycarbonate or fiberglass |
| Environmental | |
| Operating temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage temperature | -40°C to +85°C (-40°F to +185°F) |
| Environmental sealing | IP65, water resistant |
| Power supply | |
| Power input | AC 100–240 V, 50/60 Hz |
| Location services | |
| Localization system | Received Signal Strength (RSSI) |
| Location accuracy | 10–100 m (32–328 ft) |
| Communications | |
| Wireless protocol | WPSN™ |
| Frequency | 915 MHz |
| Communication range | Up to 1 km (3,300 ft) outdoor; up to 100 m (330 ft) indoor |
| Internet requirement | No internet connectivity required |
| Control | |
| Relay outputs | Supports up to 8 relays |
| Operating mode | Controls relay status locally according to detected MuckPuck tags |
| Indicators | |
| LED 1 | System health |
| LED 2 | Tag detection |
| Approvals and accessories | |
| Regulatory | FCC, IC, CE, UL, RoHS |
| Accessories | Waterproof cable glands |
| Availability | Confirm with Peytec |
